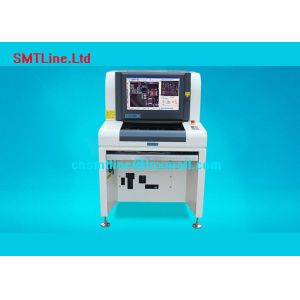

Aleader ALD515 Best Value Offline AOI SMT AOI Machines China brand high quality assembly equipment
Quick Detail
Fast programming design
Multi-domain application design
Intelligent coaxial light source design
Built-in ALDSPC software package
High precision, high detection rate
Multiple Mark function (including Bad Mark)
Multiple programs running simultaneously
Intelligent automatic reading of Barcode
Remote Control and Center Server
Feature
| Product Name: | SMT AOI offline Machines |
| Used for: | smt assembly full line |
| Warranty: | 1 Year |
| Shipment | by air |
| Delivery Time: | 1-2Days |
| Our Main Market | Whole of the world |
| Functional Specifications | |
| Detected circuit board | Circuit board inspection after SMT reflow oven |
| Detection method | TOC algorithm, Histogram algorithm, Match algorithm, Short algorithm, OTHER algorithm, CREST algorithm, PIN algorithm and many other leading international algorithms, the system automatically sets its parameters according to different detection points |
| camera | Full-color smart digital camera |
| Resolution / Vision Range / Speed | Standard: 15μm/Pixel FOV: 38mm×31mm Detection speed <200ms/FOV |
| Optional: 8μm/Pixel FOV: 20mm×16mm Detection Speed <220ms/FOV | |
| light source | Bright RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manually written, automatic frame, CAD data import automatically corresponding component library |
| remote control | Remote operation via TCP / IP network, view, start or stop machine operation, modify program, etc. |
| Detection coverage type | Offset, Tin, Short Circuit, Contamination, Missing, Skew, Tombstone, Side-up, Turnover, Misplaced, Damaged, Elevated, Polarity, Welded, Empty, Overfilled, Tin, Pinout Outgoing |
| Special features | Multiple programs running at the same time, support for automatic program retrieval; 0-359° rotating parts can be checked (unit is 1°) |
| Minimal part testing | 8μm: 01005chip & 0.3pitch IC |
| SPC and process control | Full record of test data and statistics and analysis, any region can view production status and quality analysis, can output Excel, Txt and other file formats |
| Bar code system | Camera automatically recognizes and transmits Barcode (1D or 2D code), and MultiMark function (including Bad Mark) |
| Server mode | Central server can be used to centralize the management of several AOI data |
| operating system | Windows7 Professional |
| Inspection result output | 22-inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
| PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
| The maximum PCB weight | 3KG |
| PCB curvature | <5mm or 2% of the PCB diagonal length |
| Clear height above and below PCB | Top Side: 30 mm PCB Bottom Side: 60 mm |
| Conveyor system | Automatically opened and retracted bilateral fixtures, automatic compensation PCB bending deformation |
| Conveyor height above ground | 850 to 920 mm |
| Conveyor Flow / Time | PCB moves in Y direction Feeding/Putting out time: 2 seconds |
| X/Y platform driver | Screw motor drive; PCB fixed, Camera moving in X direction, each with CTQ certification |
| power supply | AC230V 50/60 Hz is less than 0.5KVA |
| Pressure | Need not |
| equipment weight | About 520KG |
| Equipment dimensions | 900×1070×1310mm (L×W×H) |
| Environmental temperature and humidity | 10 to 35°C 35 to 80% RH (without condensation) |
| Equipment safety regulations | Comply with CE safety standards |
